Planning an overhead crane system requires more than determining the required lifting capacity. The available building height, required lifting range, hook position, and equipment dimensions all affect how effectively a crane can operate within a facility. Poorly planned lift height can reduce usable workspace, restrict load movement, and create unnecessary limitations during installation.
Cloud King at WORLDHOISTS is designed for crane system planning and calculation, helping users evaluate lifting requirements before equipment is finalized. By considering overhead crane lift height, crane hook height, and available headroom together, project teams can develop a lifting system that fits the actual facility layout.
Why Crane Lift Height Matters
Crane lift height determines how high a load can be raised during operation. This directly affects whether materials can be transferred over machinery, positioned on production lines, or moved through different working areas.
However, the maximum lifting height is not simply the distance from the floor to the roof. The physical dimensions of the crane structure, trolley, hoist, hooks, and other components also occupy valuable vertical space.
A system with a high rated lifting capacity may still be unsuitable if the building does not provide enough vertical clearance. This is why lift height should be considered during the early design stage rather than after the crane configuration has already been selected.
Understanding Overhead Crane Lift Height
Overhead crane lift height is generally determined by the relationship between the building structure, crane runway, hoisting mechanism, and required load position. The actual usable lifting range depends on where the crane is installed and how high the load needs to be positioned.
For example, a manufacturing facility may need to lift components above production equipment. A warehouse may require loads to reach elevated storage areas. A maintenance workshop may need sufficient clearance to remove machinery components safely.
Each application creates a different vertical clearance requirement. Instead of specifying a maximum height without considering the facility, users should identify the highest and lowest positions required during normal operation.
This approach provides a more realistic basis for equipment selection and helps prevent conflicts between the crane and surrounding structures.
How Crane Lifting Height Calculation Works
Crane lifting height calculation should account for several vertical dimensions rather than relying on a single measurement. The building’s usable height provides the starting point, but the crane girder, trolley, hoist body, hook assembly, and load itself must also be considered.
A simplified planning concept is to determine the available building height and subtract the space occupied by the crane system and the required safety clearance. The remaining distance represents the practical lifting range available to the hook and load.
The exact calculation depends on the crane configuration and applicable design requirements. Structural conditions, installation tolerances, equipment dimensions, and operating requirements may all influence the final result.
Using calculation tools during the design process can make these relationships easier to evaluate. WORLDHOISTS develops crane calculation solutions that can assist with standard crane system design and corresponding drawing generation.
Hoist Lift Height and Hook Position
Hoist lift height is closely connected with crane hook height, but the two terms should not be treated as identical. The hoist provides the vertical movement required to raise and lower the load, while the hook position determines the actual working point of the lifting system.
The required hook position should be established according to the application. If the hook must reach close to the floor, the hoist needs sufficient travel to lower the load to the required working level. If loads need to be placed at elevated positions, the upper hook position becomes equally important.
The load dimensions should also be considered. A large load may require additional clearance even when the hook itself reaches the required height. This is especially important when materials need to pass over machinery, platforms, or other obstacles.
Balancing Lift Height With Headroom
Increasing lifting height is not always the best solution. More vertical movement can require additional equipment dimensions or affect the overall crane arrangement. In facilities with limited headroom, the goal should be to achieve the required working height while using the available vertical space efficiently.
Low headroom applications may require particular attention to hoist configuration, trolley arrangement, crane girder dimensions, and hook approach. These factors should be evaluated together rather than independently.
For new facilities, crane requirements should ideally be considered during building design. For existing facilities, accurate measurements of roof structure, runway elevation, machinery, and working areas can provide the information needed for a practical crane configuration.
Using Cloud King for More Practical Crane Planning

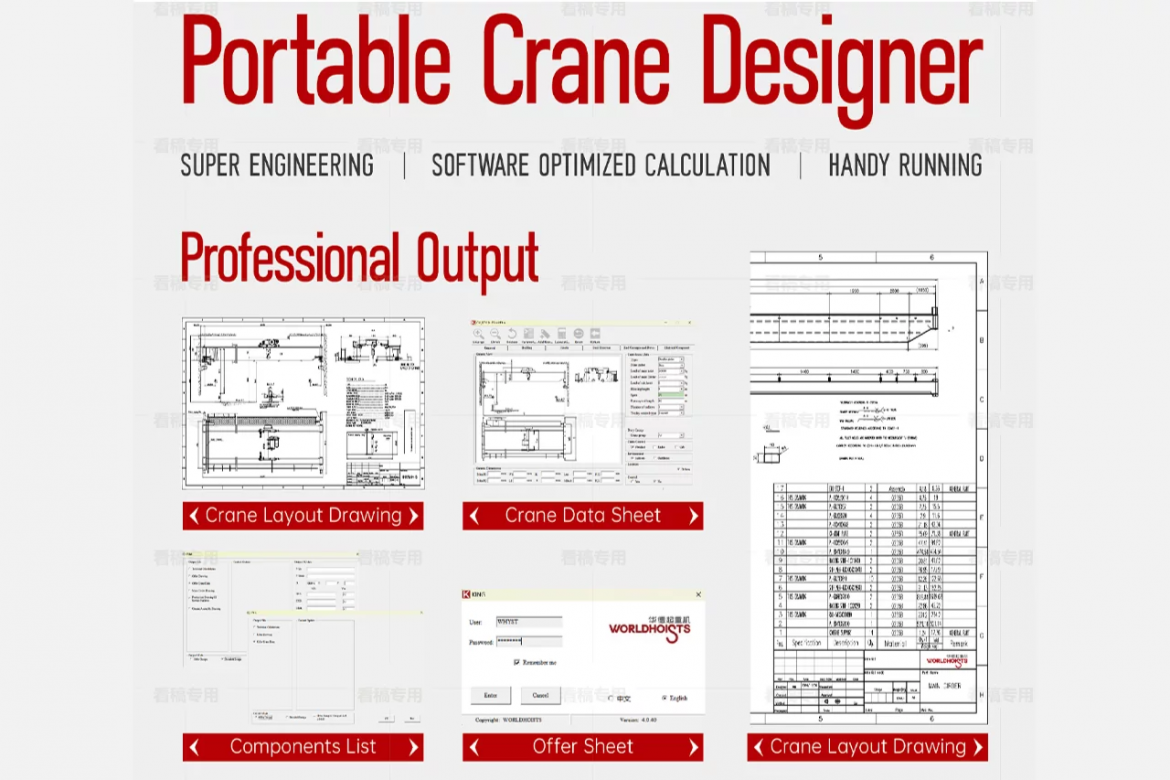

Cloud King is part of WORLDHOISTS’ approach to digital crane design and calculation. According to WORLDHOISTS, its KING software can generate standard crane designs and corresponding drawings based on project requirements, helping users review crane systems and components during the planning process.
This type of calculation support can be particularly useful when evaluating multiple equipment configurations. Instead of relying only on theoretical dimensions, project teams can review how the selected crane arrangement relates to the required lifting conditions.
A well planned system should account for lifting capacity, crane span, operating environment, hoist lift height, hook position, and available headroom as part of one overall design.
Designing Around the Actual Facility
Effective crane planning begins with the facility rather than the equipment catalog. Before specifying a system, users should identify the required load path, maximum load position, minimum hook position, available building height, and potential obstructions.
Overhead crane lift height should then be evaluated alongside structural and operational requirements. Crane lifting height calculation can help determine whether the proposed configuration provides sufficient clearance, while careful consideration of hoist lift height and crane hook height can help establish the practical working range.
With digital design support such as Cloud King, WORLDHOISTS provides a way to bring these considerations together during the planning stage. A carefully calculated crane system can make better use of available vertical space, support smoother material handling, and reduce the risk of discovering clearance problems after installation.
